6 Tonne 4-400 Series Crane For Kilsby Jorgensen Steel & Aluminium Ltd

Crane Specification:   Technical Resume:

Capacity
Span
Duty
Height of Lift
Hoist Speed
Cross Traverse Speedd
Long Travel Speed
Mode of Control
6 tonnes
18.3 metres
M4
9.3 metres
5/1.2
mpm
20/5
mpm
40/10
mpm
Radio & Standby Pendant

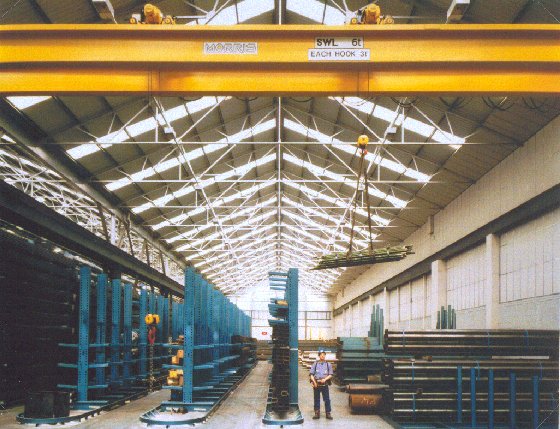

The double girder crane shown above was one of three 4-400 series, supplied to Kilsby Jorgensen Steel & Aluminium. Two, 3 tonne crab units work in tandem or independently with a maximum safe working load of 6 tonnes, suitable for warehouse/ production facility. The crane is fitted with radio remote control and complete with a standby pendant.
