16/10 Tonnes Steelworks Crane for OVAKO

Crane Specification:   Technical Resume:

Capacity
Span

Hoist Classification
Auxiliary Classification
Lifting Class
Loading Group
Hoist Speed
Auxiliary Speed
Cross Traverse Speed
Long Travel Speed
Mode of Control
16/10 tonnes
23.3 metres & 19.2 metres
4M
2M
H3
B4
15 mpm (inverter controlled)
5 mpm (inverter controlled)
48 mpm (inverter controlled)
80 mpm (inverter controlled)
Akerstrom Radio Control

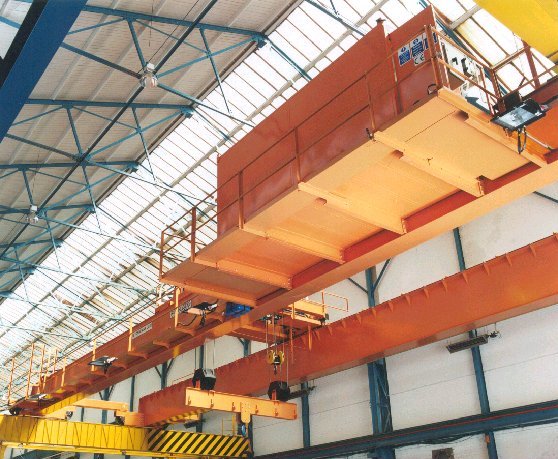

Two, 5-500 series cranes were specially designed to Swedish IKH norms, for the tube mill industry. Reeved in lifting beams at 3 metres and 3.8 metres centres respectively were fitted for handling steel bars and tubes. Each reeved block was designed for 12 tonnes with a maximum combined working load of 16 tonnes. Additional features included load weighing system, dubar platforming, sodium floodlights, load summation, hydraulic buffers, lubrication piping and 240 volt service sockets.
