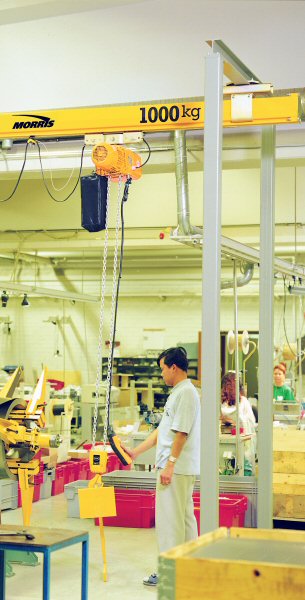

Free standing cranes are designed for locations where the roof cannot carry the crane, or where there is a need to allow for future changes in lay-out.

Free standing cranes are usually supplied in standard sizes, but if the application requires it, specific cranes can be designed to your needs.

Bespoke applications include wide spans and long downshops/lengths.

The versatility of the system means that if you have pillars or other obstacles the crane system can be designed to take account of these.

Morris will supply all the details of weights and loadings so that a customer can ensure that their floor is capable of taking the crane.

• Four profiles to choose from, no need to 'over-crane'.
• Bridge capacities can be mixed on a system. Cranes can be used in singularly or in tandum.
• Only 1% effort required to move a load making a light crane ergonomically better than an I beam system, and easier to use for longer.
• Profiled composite wheels for low friction, low noise and long life.
• Closed construction reduces maintenance and gives longer life.
• Easy to move to new sites and new locations.
• Motorised long and cross travels available.

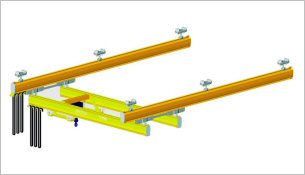

Ceiling Mounted Cranes
80 to 2000kg

With a Morris S3 Light Crane mounted in the roof you have complete and unhindered access to all your workspace areas.

With 6 different fixings available a light crane can be secured to most roof structures.

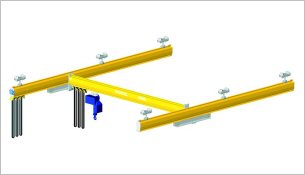

Raised Bridges

When headroom is at a premium a combination of an S3 Light Crane with a raised bridge and an S3 hoist maximises the available height of lift.

• Can be fitted on free standing and ceiling mounted systems.
• Available in both single and double girder configurations.
• A 125kg crane (excluding hoist) can fit into a roofspace of only 235mm deep.

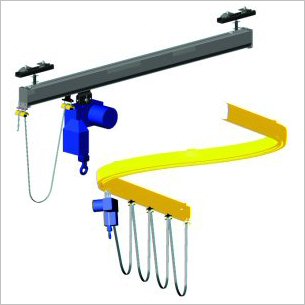

Monorails, Curves, Turntables and Telescopic Cranes

For many applications monorails that include curves, interlocks and turntables are needed.

The Morris S3 Light Crane System offers one of the most comprehensive ranges of components to build up the system you need.
