S3 Electric Chain Hoists

Mini Hoist

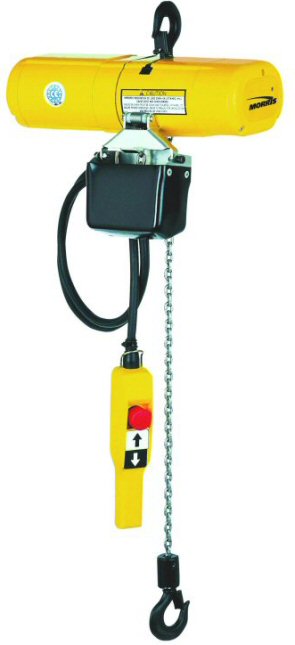

The S3 Mini Hoist
The S3 minihoist lifts loads up to 125kg - yet weighs only 12kgs. With an M4 (FEM 1AM) high duty rating, the lightweight minihoist is easy to install and maintain, making it ideal for light crane systems. The minihoist offers the highest levels of build quality and reliabilty.

Our two year warranty, repair and full after-sales service will allow you to use this excellent product with confidence.



Features and benefits
M4 (FEM 1AM) Duty, 40% ED, 240 motor-starts per hour
Easy installation and maintenance
Overload protection device as standard
10-pocket load wheel for smooth chain operation, constant chain speed and reduced chain wear
Optional impact-resistant chain container
Gear train lifetime lubricated with non-oxidising grease
Thermally protected hoist motor
Rugged cast aluminium alloy body
5:1 factor of safety
Small, compact design
Hardened forged steel lower hooks with safety latch rotates 360°
Two year warranty
IP54 Protection
12kg in weight
Drawn up dimension, 276mm
Available for 400v 3ph 50hz, 110v & 230v 1ph 50hz supplies



Technical Information
Technical data and drawings on the S3 mini hoist is available in PDF format in the download area.
